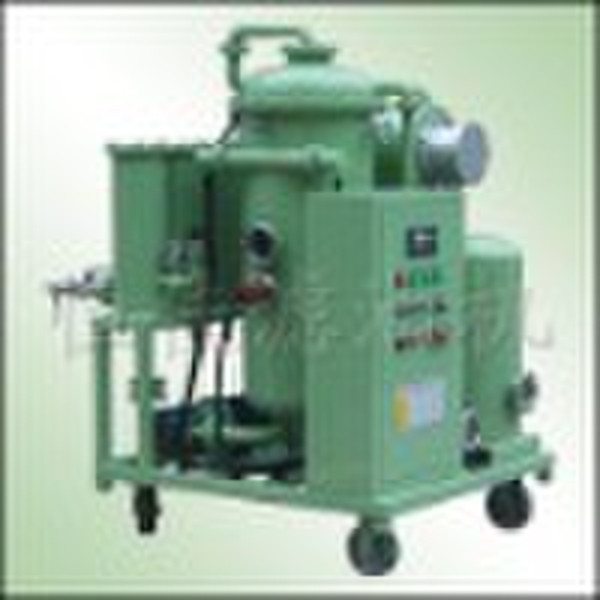

TY Turbine Oil Purifier ( Vacuum Type)

Feature: l It has the coalescence and separation technique, and three-dimensional flash distillation technique, and it has strong ability to break emulsion and remove water from the oil. l Latest Chinese and international process which is an integration of gravity method, evaporation method, aggregation method, vacuum separation and mechanical purification. l Precise multi-stage filtration system helps to remove different kinds of impurities with high quality filter element of better ability of containing pollutants and long service life. l Optimized electric heating system with automatic constant temperature controller ensures that oil temperature to be even and stable. l An advanced fully automatic temperature controlling system, liquid-level controlling system, defoaming controlling system, pressure protecting system and excellent equipment can ensure operation of the equipment with high performance. Technical Parameter List ItemParamNameUnitTY-20TY-30TY -50TY -80TY -100TY -150TY -200TY -300Technical ParameterFlowL/H1200180030004800600090001200018000Operating Vacuum DegreeMPa-0.06 to -0.096Working PressureMPa≤0.3Temperature RangeC20-80Power SupplyV380V/50Hz (or at user’s option)Working NoisedB(A)≤78Heating PowerKw242430456090135180Total PowerKw25.125.131.6547.66395.5142191Pipeline Diametermm2525324040505065Net WeightKg4004505506506808008501150Overall Dimensionslengthmm10001070120013001300145014501600widthmm10001000115012501250145014501600heightmm15001550175018001800215021502250Index for Oil TreatmentWater Contentmg/L≤100 (GB/T7600)Mechanical Impurity %No (GB/T511)Acid ValuemgkoH/g≤0.3 (GB/T264)Demulsifying Valuemin≤60 (GB/T7605)Filtration Precisionµm≤10
